Tube Diffuser

Disc Diffuser

AIR FINE BUBBLE DIFFUSERS

Tube Diffuser: EPDM membrane- 63mm x 610mm

Description

PROFLEX TP636E Tube diffuser is an assembly of high quality EPDM membrane of 63mm diameter and 610mm length on standard PVC pipe and tightly held by SS 304 clamps to ensure trouble free operation. The air inlet is through rigid PVC Hub designed to provide uniform air distribution throughout the tube. The minute pores on the membrane behave as NRV to prevent water from entering the tube.TP636 E comes with ¾" SS adaptor for easy mounting of diffusers to the diffuser skid.

Features

High shelf and service life
Very fine bubble aeration
Efficient oxygen transfer rate
Non-clogging
Low maintenance
Good Mechanical strength
High temperature resistance

Applications

Suitable for small Aeration Tanks Fish Ponds
Specification Download
View Download
Catalogue Download
View Download
Model – TP636 E

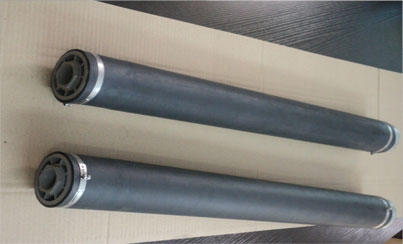

Tube Diffuser: EPDM membrane-63mm x 1000mm

Description

PROFLEX TP631E Tube diffuser is an assembly of high quality EPDM membrane of 63mm diameter and 1000mm length on standard PVC pipe and tightly held by SS 304 clamps to ensure trouble free operation. The air inlet is through rigid PVC Hub designed to provide uniform air distribution throughout the tube. The minute pores on the membrane behave as NRV to prevent water from entering the tube.TP631E comes with ¾" SS adaptor for easy mounting of diffusers to the diffuser skid.

Features

High shelf and service life
Very fine bubble aeration
Efficient oxygen transfer rate
Non-clogging
Low maintenance
Good Mechanical strength
High temperature resistance

Applications

Suitable for small Aeration Tanks Fish Ponds
Specification Download
View Download
Catalogue download
View Download
Model – TP631 E

Tube Diffuser:EPDM membrane-90mm x 1000mm

Description

PROFLEX TP901 E Tube diffuser is an assembly of high quality EPDM membrane of 90mm diameter and 1000mm length on standard PVC pipe and tightly held by SS 304 clamps to ensure trouble free operation. The air inlet is through rigid PVC Hub designed to provide uniform air distribution throughout the tube. The minute pores on the membrane behave as NRV to prevent water from entering the tube.TP901E comes with 1" SS adaptor for easy mounting of diffusers to the diffuser skid.

Features

High shelf and service life
Very fine bubble aeration
Efficient oxygen transfer rate
Non-clogging
Low maintenance
Good Mechanical strength
High temperature resistance

Applications

Suitable for small Aeration Tanks Fish Ponds
Specification Download
View Download
Catalogue download
View Download
Model – TP901 E
